SP - Series (24 - 32 m³)

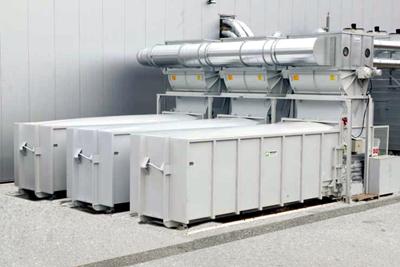

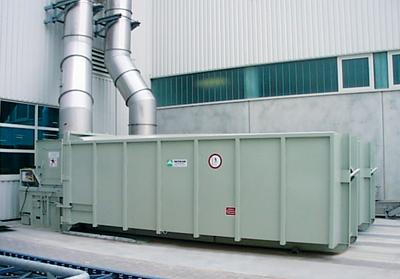

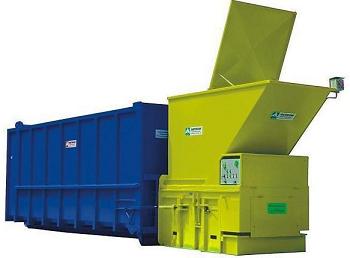

SP – Stationary press heads with containers for roll-on/roll-off trucks

Avermann-Horváth stationary presses with attachable transport containers guarantee a maximum saving of costs, time and handling of large quantities of waste. As the press unit is installed fix, there is the possibility of connecting transport containers up to a net capacity from 24 - 32 m³. All AVERMANN presses and transport containers are produced in a solid and robust steel construction. The entire operation is controlled electronically by the integrated low-maintenance electro-hydraulic unit. An environmental-friendly, hygienic and efficient waste disposal is achieved by the compaction of the material.

The machine can press, store, and transport bulky and low specific gravity materials. We recommend using this press by daily minimum of 5 – 8 m³ bulky waste.

Special equipment:

We can offer you three types of feeding mechanism:

























1. Ground level Hopper                           2. Ramp level hopper













3. Fed from inside building

Technical data



SP-12 press head

SP-16 press head

Machine length

2380 mm

3300 mm

Machine width

1600 mm

2070 mm

Machine height

1618 mm

1618 mm

Hopper length

1185 mm

1635 mm

Dead weight

2200 kg

2600 kg

Engine Power

5,5 kW

7,5 - 11 kW

Hydraulic oil

110 l

140 l

Capacity per stroke

1,2 m³

1,6 m³

Time / working cycle (empty)

54 sec

39 sec

Pressure

170 bar

180 bar

Press force

270 - 380 kN

282 - 380 kN

Capacity / hour

80 m³

148 m³

Electric supply

3 x 400 V/50 Hz

Fuse protection on site

25 A, slow

35 A, slow

Externally mounted plug

CEE-5 x 32 A/6 h

Compacting ratio

1:5

Type of transport for the containers

Multilift trucks

Attachable containers TT-series

  Container length Container width Container height Container volume Transport Container weight
TT-24 5650 mm 2420 mm 2350 mm 24,06 m3

Multilift trucks

 2950 kg
TT-27 6400 mm 2420 mm 2350 mm 27,29 m3 3250 kg
TT-32 7150 mm 2420 mm 2350 mm 31,93 m3 3450 kg
