MPC - 16 .. MPC - 22 (16 - 22 m³)

Waste compactors for roll-on/roll-off trucks



AVERMANN waste compactors are produced in a solid and robust steel construction. More than 40 years of experience in the field of compactor production as well as a sophisticated technology and high-grade processing guarantee a longevity of the machines. Because of many possible variations AVERMANN waste compactors offer the best solution for any kind of application. The compactors are built in a conical way so that they can be discharged easily.











  • Feed-opening cover: Protects the feeding area i.e. from rain water or from filling by unauthorized people.

    •

  • House connection hopper: As a connection between compacator and building. In this case the feeding is done from the inside of the building. The risk of theft is nearly excluded.

  • Additional weighing system

    •

  • Hydraulic stop slide: Springy materials, such as plastics sheetings, textiles etc. are held back in the container body by a steel plate so that the feed-opening (filling area) is always clear.

  • Modem connection: To send the filling degree and/or fault codes by SMS.

  • Round-up sealing on the rear-door and additional 4-point locking for a watertight discharging door

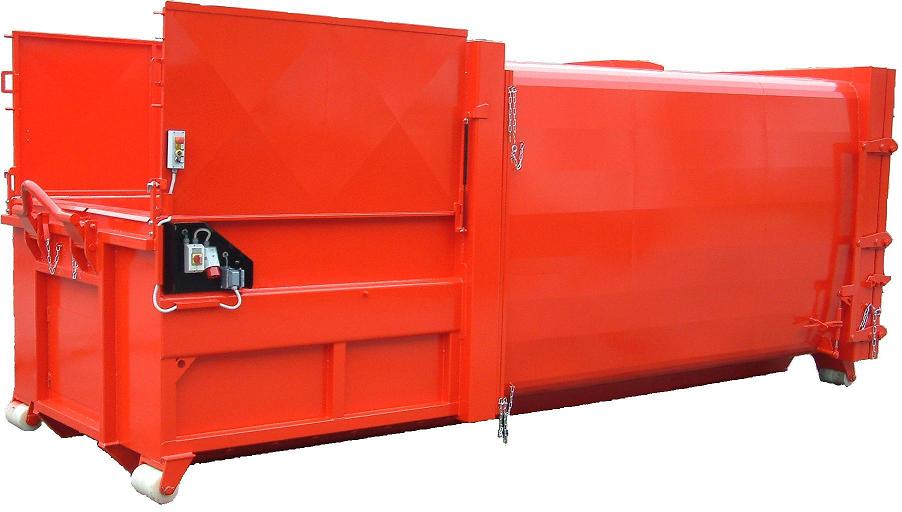

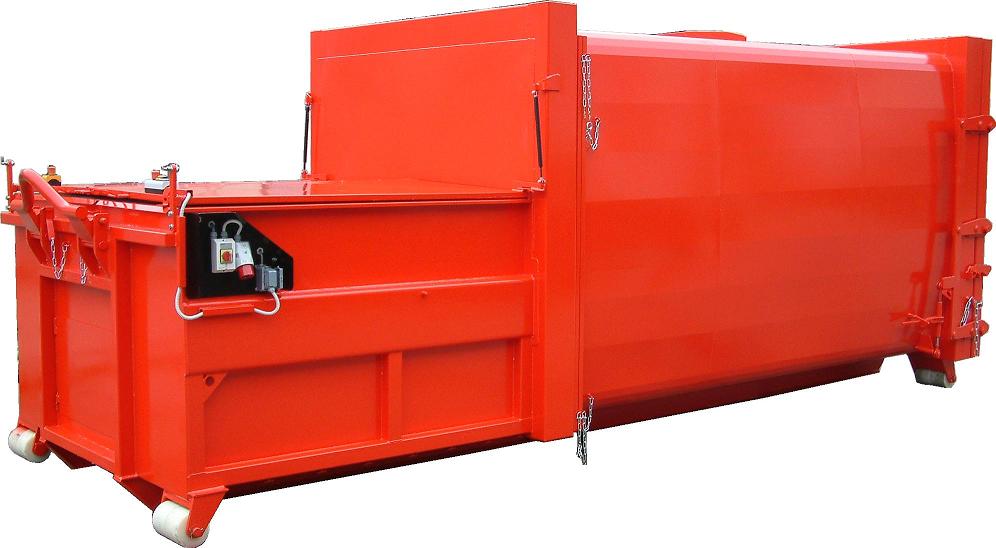

The new MPC-20 P/E/L/R press container

Technical data


  MPC-16 MPC-16 P/L MPC-18 MPC-18 P/L MPC-20 MPC-20 P/L MPC-20PELR MPC-22
Machine length 5400 mm 5900 mm 5900 mm 6400 mm 6400 mm 6900 mm 6935 mm 6900 mm
Machine width 2450 mm 2450 mm 2450 mm 2450 mm 2450 mm 2450 mm 2500 mm 2450 mm
Machine height 2550 mm 2550 mm 2550 mm 2550 mm 2550 mm 2550 mm 2580 mm 2550 mm
Net capacity 16 m3 16 m3 18 m3 18 m3 20 m3 20 m3 20 m3 22 m3
Dead weight 4400 kg 4900 kg 4550 kg 5050 kg 4700 kg 5200 kg 5089 kg 4900 kg
Feed-opening width 1980 mm 1980 mm 1980 mm 1980 mm 1980 mm 1980 mm 1980 mm 1980 mm
Feed-opening depth 1000 mm 1500 mm 1000 mm 1500 mm 1000 mm 1500 mm 1780 mm 1000 mm
Feeding height 1380 mm 1380 mm 1380 mm 1380 mm 1380 mm 1380 mm 1500 mm 1380 mm
Motor power 5,5 kW 5,5 kW 5,5 kW 5,5 kW 5,5 kW 5,5 kW 5,5 kW 5,5 kW
Oil quantity 70 l
Capacity/working cycle 1,3 m3 1,9 m3 1,3 m3 1,9 m3 1,3 m3 1,9 m3 1,9 m3 1,3 m3
Time/working cycle (empty) 37 sec 66 sec 37 sec 66 sec 37 sec 66 sec 66 sec 37 sec
Press force 200 Bar
Press force 380 kN
Electric supply 3 x 400 V/50 Hz
Fuse protection on site 25 A, slow
Externally mounted plug CEE-5 x 32 A/6 h
Compacting ratio 1:5
Transport system Multilift trucks
