DRUM PRESSES |
... wherever many drums arise!

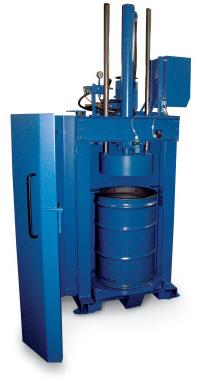

The AVERMANN drum press is suitable for pressing empty sheet metal drums with a capacity of up to 200 l for the reduction of volume. Using an insert, also tins and paint buckets can be pressed.
Specifications
Easy operation by key switches and automatic stroke
Electronical, low-maintenance control
With integrated electro-hydraulic unit
Saving transport space and costs
Compacting, for example, empty 200 l drums to approx. 100 - 140 mm
Different sizes and designs available
Special equipment
Ex-protection design: here electrical ex-protected components are used
Drum opening device for partly or totally filled drums (FP 22). Knives open the drum in such a way that residual materials, such as liquids, can be pressed out.
Support feet, adjustable in height (FP 22). The press can be raised and a small container can be placed underneath to collect the pressed out liquids.
Hydraulical adaptor (FP 22). Here smaller drums than 200 l, as, for example, buckets, tins, cans, can be filled in and compacted.
|
Type |
FP - 11 |
FP - 22 |
|
Machine height |
2.820 mm |
3.100 mm |
|
Machine width |
1.150 mm |
1.950 mm |
|
Machine depth |
950 mm |
2.150 mm |
|
Max. drum diameter |
600 mm |
600 mm |
|
Max. drum height |
1.000 mm |
1.000 mm |
|
Machine weight |
1.020 kg |
1.400 kg |
|
Press force |
155 kN |
310 kN |
|
Oil quantity |
15 l |
35 l |
|
Working pressure |
200 bar |
200 bar |
|
Press plate stroke |
1.000 mm |
1.000 mm |
|
Electric supply |
3 x 400V / 50Hz |
3 x 400V / 50Hz |
|
Externally mounted plug |
CEE-5 x 32 A/6 h |
CEE-5 x 32 A/6 h |
|
Fuse protection on site |
25 A, slow |
32 A, slow |
|
Motor power |
4,0 kW |
7,5 kW |
|
Control |
automatically |
manually/automatically |
