No matter whether pressing paper, cardboard, plastics or general waste – AVERMANN AVOS 88 and 108 horizontal balers offer the best solution for different applications. AVERMANN horizontal balers are used for the continuous pressing of recycling material and valuable substances world-wide. The highly densified and fully automatically wire tied bales require a minimum of space only and can be transported very economically. Longevity and low power requirement as well as a steady operation guarantee a high efficiency of the AVERMANN horizontal balers. The throughput is from 2 up to 3,5 tons per hour, depends on machine type. The dimensions of the bales are 800 x 550 x adjustable length; up to 300 kg.

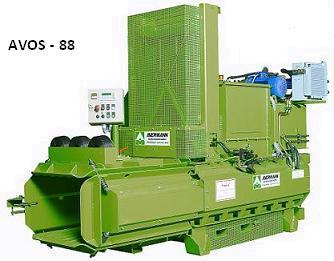

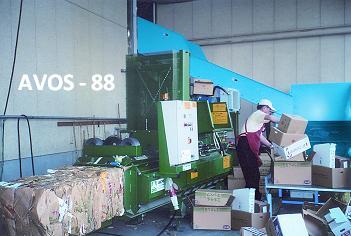

Basic standard AVOS 88

• The frame of the machine consists of a solid welded construction and is provided for the fastening on the floor with dowels.

• Capacity controlled, power saving pressure ram drive via axial piston pump.

• Automatic binding with drill fingers for binding the bale with wire, three times vertically, incl. wire stock for the automatic binding to keep 6 pieces of 20 kg wire coils.

• Rapid motion/power speed control system as well as an automatic speed adoption depending on required press force.

• Cutting knives on the force plate and on the opposite plate for cutting off the overhanging material in the hopper section.

• Adjustable knife clearance to minimize the cutting forces.

• Press ram cover for continuous feeding.

• Three-sided semi-automatical adjustment of the press channel.

• Electrically controlled baler length-measuring system.

• Free programmable PLC, Siemens Simatic S7.

• Pressure-ram actuation with low-maintenance plastics guides, highly wear-resisting and indifferent to dust.

• First equipment of hydraulic oil, capacity: 300 l (88-7.5/30) or 450 l (88-11/30)

• Heating system for electric control cabinet.

• Plain text display to indicate the corresponding operating status.

• Photocell inside the hopper of the baler for the press stroke control system.

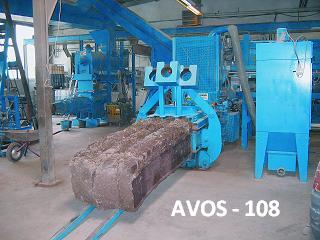

Basic standard AVOS 108

• The frame of the machine consists of a solid welded construction and is provided for the fastening on the floor with dowels.

• Capacity controlled, power saving pressure ram drive via axial piston pump.

• Rapid motion/power speed control system as well as an automatic speed adaptation depending on required press force.

• Cutting knives on the force plate and on the opposite plate for cutting off the overhanging material in the hopper section.

• Adjustable knife clearance to minimize the cutting forces.

• Three-sided fully automatical adjustment of the press channel.

• Electrically controlled bale length-measuring system.

• Free programmable PLC, Siemens Simatic S7.

• Pressure ram actuation with maintenance-free plastics guides, highly wear-resisting and indifferent to dust.

• First equipment of hydraulic oil, capacity: 450 l.

• Heating system for electric control cabinet.

• Screw-press bottom made of Hardox 400 sheet steel.

• Wire coil holders for automatic binding, to keep 6 pieces of 20 kg wire coils.

• Wire guide system installed below the machine to ensure a safe picking up of the bottom wires.

• Automatic binding with drill fingers for binding the bale with wire, three times vertically, incl. wire stock to keep 6 pieces of 20 kg wire coils.

• Big maintenance door for the lance unit for easy access to the drilling system.

• Plain text display to indicate the corresponding operating status.

• Photocell inside the hopper of the baler for the press stroke control system.

• Automatic binding with mechanical wire transmission and cabling.

• Material re-holder to optimise the pressing process for highly expanding material, as, for example, plastics, PET-bottles etc. The re-holders (two on each side) are fitted flexible in order to guarantee a safe pressing.

• Bin-lift-tipping device

• Oil-/air cooling unit

• Bale slide

• Wire-end control

• Automatical channel adjustment

• Feeding hopper

• Wire coil holder 250/400 kg

• (for AVOS 88 only)

• Prolongation of press channel (for AVOS 88)

• Oil heating

• Feeding/inclined conveyor belt

• Perforator/rotary shredder

• Special press ram (for AVOS 108 only)

        For pressing scrap, residual waste, wooden boxes etc. There are no openings inside the ram where pressed material can get jammed or emerge. The slots are only released for binding the bale. The press-ram is patented (patent No. DE19860316A1).
