AVOS - 147 and AVOS - 147 K

The horizontal balers can raise the capacity against the vertical balers immensely.



The AVOS 147 (manual binding, cross binding option) is the most versatile machine in our program for many kind of materials. The bales are very huge (1200 x 750 x 1100 mm) and their weight can be up to 800 kg (depends on material).



Features

  • Electro-hydraulic drive

  • Simple operation

  • High performance, solid construction

  • Big feeding hopper

  • High bale weight with constant bale length

  • Hydraulic door lock with damped opening mechanism

  • Low-maintenance press ram guiding

  • Compacting paper, cardboard, plastics or foam material to Euro-standard bales

  • Manual binding with plastic straps or steel wire: 4-fold horizontally

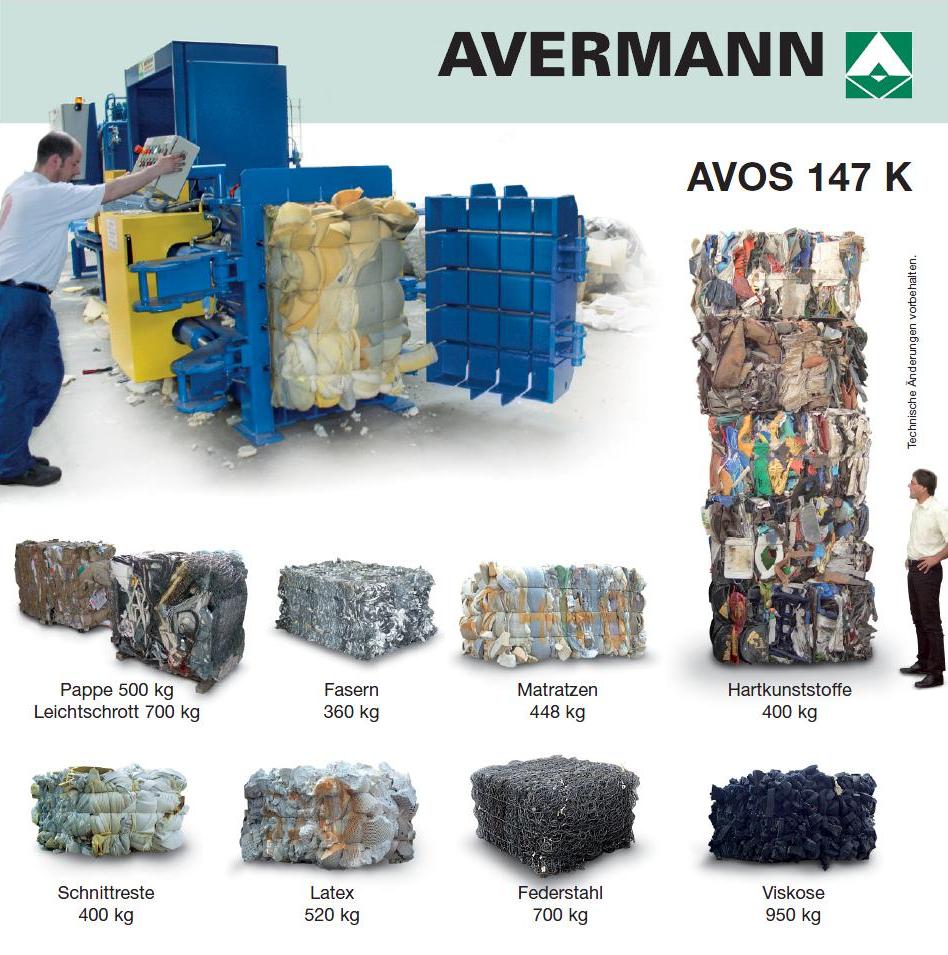

  • Manual cross binding: 3-fold vertically and 4-fold horizontally, e.g. for foam materialAVOS 147K MATERIALS / PUSH THE BUTTON

Special equipment for AVOS 147 and AVOS 147 K













Outlet of bale                                                Cardboard bale weight appr. 520 kg            Material re-holder keep the feeding

                                                                                                                                                          chute free for following material











  Manual binding with quick-tie-wires        Cross binding makes a solid bale               Lateral waste pressed in poly bags.

                                                                                                                                                                    Weight approx. 300 kg



Technical data



Machine height

2490 mm

Machine width

1600 mm

Machine length

6270 mm

Feeding height

1450 mm

Press force

500 kN

Bale size (L x W x H)

1200 x 1100 x 750 mm

Bale weight

800 kg-ig

Engine power

15 kW

Dead Weight

7500 kg

Cycle time (idle state)

46 sec

Troughput idle state

103 m³ / h

Throughput (depending on material)

max. 2 t / h

Semi automatic bale discharge



Electric supply

3 x 400 V / 50 Hz

Fuse protection on site

32 A, slow

Externally mounted plug

CEE-5 x 32 A/6 h

Binding

Plastic stripes / steel wire
