Horizontal Baler with automatic binding (4 or 5 times)

Good value maximum output.

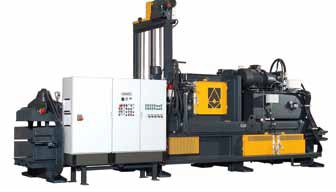

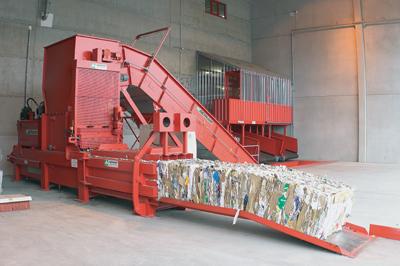

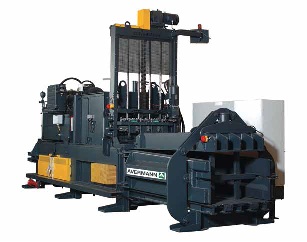

By taking the AVERMANN AVOS-1410 horizontal baler you have opted for the most modern technology and best built quality. Waste disposal and recycling companies know about the advantages of AVERMANN horizontal balers when managing large material volumes. With modern construction and production technologies we set quality standards in our market place. AVERMANN horizontal balers offer our clients a maximum of efficiency and user-friendliness. The machines can be delivered from 22 up to 45 kW engines; the press force is between 50 and 80 tons. The throughput can be up to 18 tons per hour; bale dimensions are 1100 x 700 x adjustable length (up to 600 kg).

Specifications

• Electro-hydraulic drive from 22 up to 45 kW

• Press force from 500 up to 800 kN

• Fully automatically channel adjustment

• 4 or 5 times vertically binding

• Hopper cross section 1,400 x 1,000 mm

• Bale size (W x H) 1,100 x 700 mm, adjustable length

• Bale weights up to 600 kg

• Throughput up to 18 t/h

• Dimensions L x W x H 8,300 x 2,200 x 3,800 mm

Special equipment

• Cyclone

• Oil heating

• Oil-/air cooling

• Bale slide

• Feeding hopper

• Feeding/inclined conveyor belt

• Bin-lift tipping device

• Wire-end control

• Wire coil holder 400 kg

• Extending of press channel

• Enlarged cross section (1,100 x 750 mm)

• Perforator/shredder

• Special press ram

For pressing scrap, residual waste, wooden boxes etc. There are no openings inside the ram where pressed material can get jammed or emerge. The slots are only released for binding the bale. The press-ram is patented (patent No. DE19860316A1).





















Technical data

	AVOS 1410-22/50	AVOS 1410-30/60	AVOS 1410-37/70	AVOS 1410-45/80
Engine power	22 kW	30 kW	37 kW	45 kW
Press force	500 kN	600 kN	700 kN	800 kN
Feeding hopper cross section	1 400 x 1 000 mm
Bale weight* up to	450 kg	500 kg	550 kg	600 kg
Cycle time (empty)	13,3 sec	12 sec	12 sec	16 sec
Idle speed capacity (theoretically)	266 m³/h	304 m³/h	304 m³/h	227 m³/h
Throughput** 35 kg/m³ (cardboard)	5,5 t/h	6,3 t/h	6,3 t/h	6,0 t/h
Throughput** 60 kg/m³ (cardboard, paper)	7,5 t/h	8,0 t/h	10,9 t/h	10,5 t/h
Throughput** 100 kg/m³ (newspapers)	9,7 t/h	14,0 t/h	18,2 t/h	17,5 t/h
Specific press force	64,9 N/cm²	77,9 N/cm²	90,9 N/cm²	103,9 N/cm²
Bale size (W x H)	1100 x 700 x adjustable length
Dead weight	15 000 kg	15 000 kg	16 000 kg	16 500 kg
Dimensions (L x W x H)	8 400 x 2 400 x 3 770 mm



* depending on bale length and material

** relating to apparent weight
