Horizontal Baler with automatic binding (5 times)

Good value maximum output.

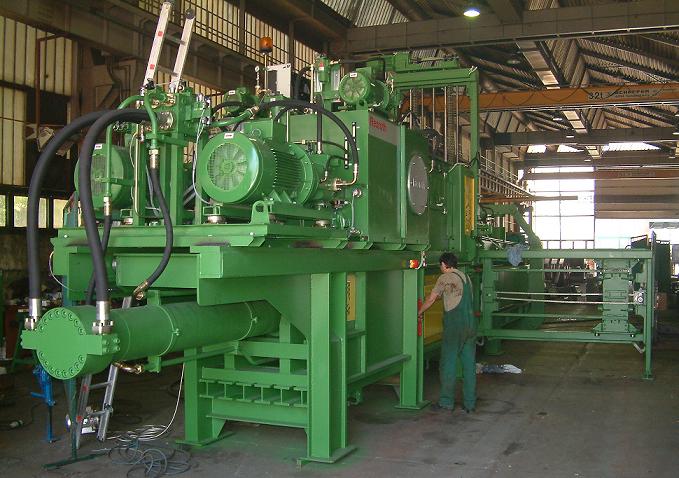

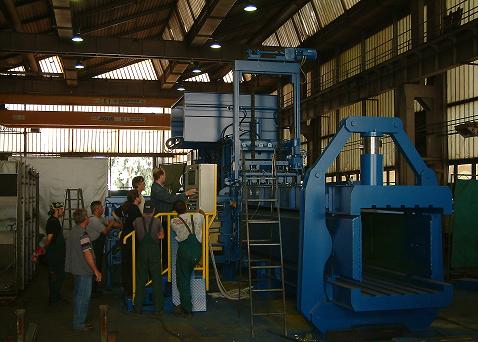

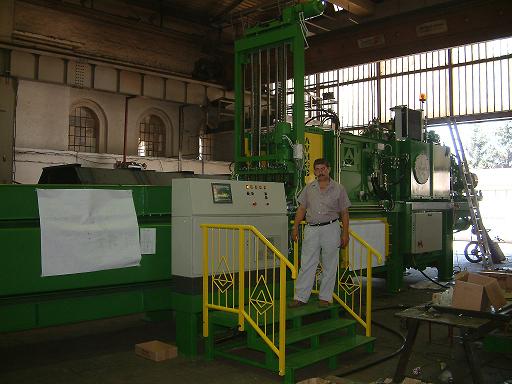

We are very proud of our newest development the AVHOB 2010; one of the biggest baler machine in the world. Our main target was to design a product which can produce bales of 1 tons from cardboard by bale dimensions of 1100 x 1100 x adjustable length. It is possible to reach a throughput of 40 tons per hour. Instead of Teflon guides we invented a free of maintenance roller system for the pressure ram (lifetime up to 5 years). The machine can be delivered from 90 up to 130 kW engines; the press force is between 130 and 200 tons.

Standard models

AVHOB 2010 110* / 130**

AVHOB 2010 110* / 150**

AVHOB 2010 110* / 170**

* Drive capacity in kW

** Press force in tons

Specifications

• Electro-hydraulic drive 2 x 55 kW
• Press force from 1 300 up to 1 700 kN
• Fully automatically channel adjustment
• 5 times vertically binding
• Hopper cross section 2,000 x 1,000 mm

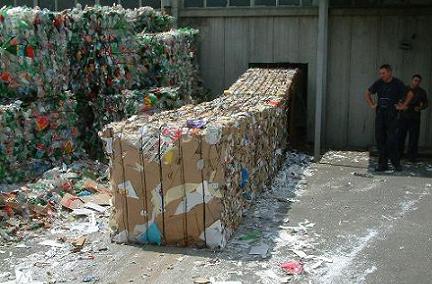

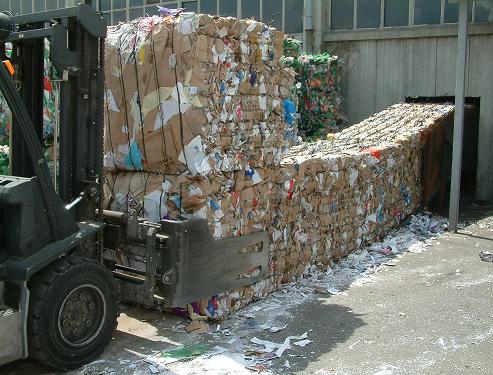

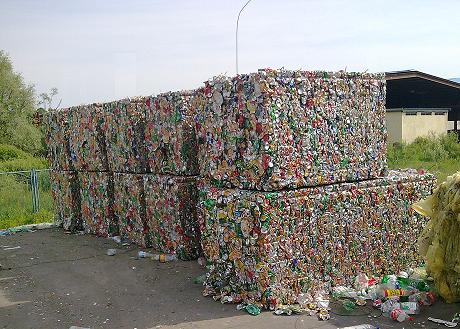

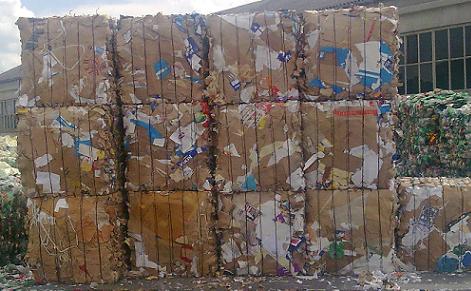

• Bale size (W x H) 2,000 x 1,000 mm, adjustable length
• Bale weights up to 1 100 kg
• Throughput up to 40 t/h
• Dimensions L x W x H 13,629 x 4,610 x 4,945 mm

• Machine frame in particularly solid welding construction, designed for heavy duty, provided for the fastening on the foundations, which have to be prepared.

• Capacity controlled, power saving pressure ram drive via two axial piston pumps.

• Rapid motion/power speed control system as well as an automatic speed adaptation, depending on the necessary pressing power to increase the throughput capacity.

• Cutting knives on the force plate and on the counter plate for cutting off the overhanging material in the hopper section.

• Adjustable knife clearance to minimise the cutting forces.

• Cutting edge stamper, fully automatic hydraulically operated; power: 196 kN.

• Force plate channel laterally and below made of 20 mm XAR® 400 sheet steel.

• Screw press bottom made of wear-resistant 20 mm XAR® 400 sheet steel.

• Press ram cover for continuous feeding.

• Three-sided adjustment of press channel, regulation depending on pressing power.

• Automatic binding with mechanical wire pulling- and cabling device.

• Electrically controlled bale length-measuring system.

• Pressure ram guiding with zero-maintenance rollers, highly wear-resisting and indifferent to dust (up to five years without any costs of plastic guides).

• Free programmable PLC, Siemens Simatic S 7 (Large touch screen display).

• 5 station selection switches for different material types.

• Working hour meter.

• Bale quantity counter.

• Plain text display to indicate the corresponding operating status.

• Photo cells inside the hopper of the baler for the press stroke control and as overcharge protection.

• Infinitely variable speed adjustment from the feed belt up to a drive capacity of 9.2 kW.

• First equipment of hydraulic oil, capacity: 3 000 l.

• Separate heating-, cooling- and filter circuit for the hydraulic oil, Oil filtration with 3µm filter.

Special equipment

• Ruffler (Electric motor driven, in and out swivelling; drive capacity:   11 kW.)
• Oil heating
• Oil-/air cooling
• Bale slide
• Feeding hopper

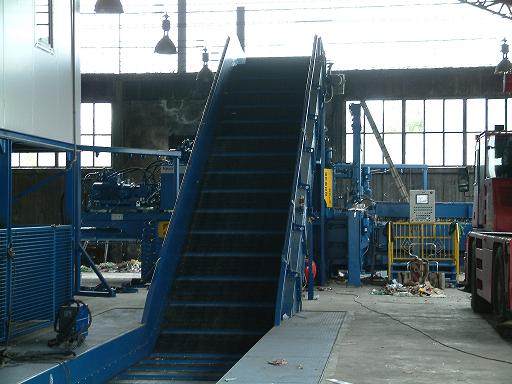

• Feeding/inclined conveyor belt / pit cover for the horizontal part
• Wire-end control
• Wire coil holder for 100 kg wire coils
• Perforator/shredder
• Horizontal binding (twice)

• Special press ram

  For pressing scrap, residual waste, wooden boxes etc. There are no openings inside the ram where pressed material can get jammed or emerge. The slots are only released for binding the bale. The press-ram is patented (patent No. DE19860316A1).
